MCP 学习&实践—Model Context Protocol

MCP 概念

比较官方的概念:

MCP(Model Context Protocol) 是由 Anthropic 于 2024 年 11 月推出的开源协议,旨在为大型语言模型(LLM)与外部工具、数据源之间建立统一、安全、标准化的通信接口。

它解决了传统集成中 “M × N” 的复杂问题,转变成更容易管理的 “M + N” 结构:各 LLM 客户端只需实现一次 MCP 客户端,各工具或数据源只需实现一次 MCP 服务端,简化了开发与维护成本。

MCP 可应用于:

  • 文件系统访问、数据库查询、API 调用等工具性操作;
  • 安全授予权限,确保用户掌控访问授权;
  • 支持 JSON-RPC 2.0 协议、客户端-服务器架构和能力协商机制

图片来自:

理解和学习一下核心概念

内容来自官方文档https://modelcontextprotocol.io/docs/

MCP 架构中的关键参与者是:

  • MCP Host: The AI application that coordinates and manages one or multiple MCP clients
    MCP 主机:协调和管理一个或多个 MCP 客户端的 AI 应用程序
  • MCP Client: A component that maintains a connection to an MCP server and obtains context from an MCP server for the MCP host to use
    MCP 客户端:保持与 MCP 服务器连接并从 MCP 服务器获取上下文供 MCP 主机使用的组件
  • MCP Server: A program that provides context to MCP clients
    MCP 服务器:为 MCP 客户端提供上下文的程序

消息格式

MCP 本质是一个用 JSON-RPC 2.0 作为通信协议的客户端-服务端系统:

  • Host(客户端) → 发 JSON-RPC 请求,调用 MCP Server 提供的 Tool
  • MCP Server(服务端) → 收到 JSON-RPC 请求后执行方法,并返回 JSON-RPC 响应

例子:MCP 请求一个 Tool:

{
  "jsonrpc": "2.0",
  "method": "tools/call",
  "params": {
    "name": "get_weather",
    "arguments": { "city": "Haikou" }
  },
  "id": 1
}

MCP Server 响应:

{
  "jsonrpc": "2.0",
  "result": {
    "temperature": 30,
    "condition": "Sunny"
  },
  "id": 1
}

传输

一些文章

https://zhuanlan.zhihu.com/p/1920408556986954650

维度STDIOHTTP+SSE (旧版)Streamable HTTP (新版)
传输通道进程间 stdin/stdout,JSON-RPC,消息以换行分隔且不得含嵌入换行。两端点:SSE 用于服务器→客户端推送,HTTP POST 用于客户端→服务器发送。单一 HTTP 端点(支持 POST/GET);服务器可选择把响应升级为 SSE 流进行多条消息/通知推送。
连接模型客户端启动服务器为子进程并用标准流通信。持续 SSE 长连接,辅以独立 POST 端点,需维持稳定长连。无需强制长连,按需升级为 SSE;可支持无状态(stateless)部署。
方向性双向(通过 stdin/stdout 交换 JSON-RPC 请求/响应/通知)。“下行”靠 SSE,“上行”靠 POST;服务端通过 SSE 向客户端推送事件。双向;POST 可触发流式响应(SSE),GET 也可单独打开 SSE 流以接收通知/请求。
流式能力不涉及网络流式传输;进程内低延迟。通过 SSE 长连接实现服务器到客户端的连续事件流。原生支持“可流式”HTTP:按需升级为 SSE,既能一次性返回,也能持续推送多消息。
部署/基础设施适合本地集成,客户端直接管理子进程生命周期。需要保持可靠的长连接和独立端点管理。纯 HTTP 实现,兼容标准 HTTP 基础设施与中间件;更易部署与扩展。
会话与状态由宿主进程掌控;天然同进程上下文。典型为长会话但连接中断难恢复。支持会话 ID 与无状态服务器;可在断线后恢复或重建流。
安全要点仅限本机进程间通信,攻击面小。需妥善管理 SSE 端点与跨域/连接稳定性。必须校验 Origin、建议仅绑定 localhost、本地需注意 DNS 重绑定风险与鉴权。
规范地位强烈建议客户端尽可能支持。旧版标准传输之一(2024-11-05),现已被替代。当前标准传输,与 STDIO 并列;取代了原 HTTP+SSE 模式。

Mcp 使用

基本逻辑就是利用 MCP 客户端,配置 MCP 服务器,启用然后让 AI 调用

基于 TypeScript 的服务器可直接通过 **<font style="color:rgb(17, 24, 39);background-color:rgba(238, 238, 238, 0.5);">npx</font>** 使用:

npx -y @modelcontextprotocol/server-memory

基于 Python 的服务器可使用 **<font style="color:rgb(17, 24, 39);background-color:rgba(238, 238, 238, 0.5);">uvx</font>**(推荐)或 **<font style="color:rgb(17, 24, 39);background-color:rgba(238, 238, 238, 0.5);">pip</font>**

# 使用 uvx
uvx mcp-server-git

# 使用 pip
pip install mcp-server-git
python -m mcp_server_git

给出几个示例,简单演示一下

图标生成

采用魔塔社区的一个“可视化图标-MCP-Server”的一个项目演示一下如何使用 MCP

官方 Github 地址:

GitHub - antvis/mcp-server-chart: 🤖 A visualization mcp contains 25+ visual charts using @antvis. Using for chart generation and data analysis.

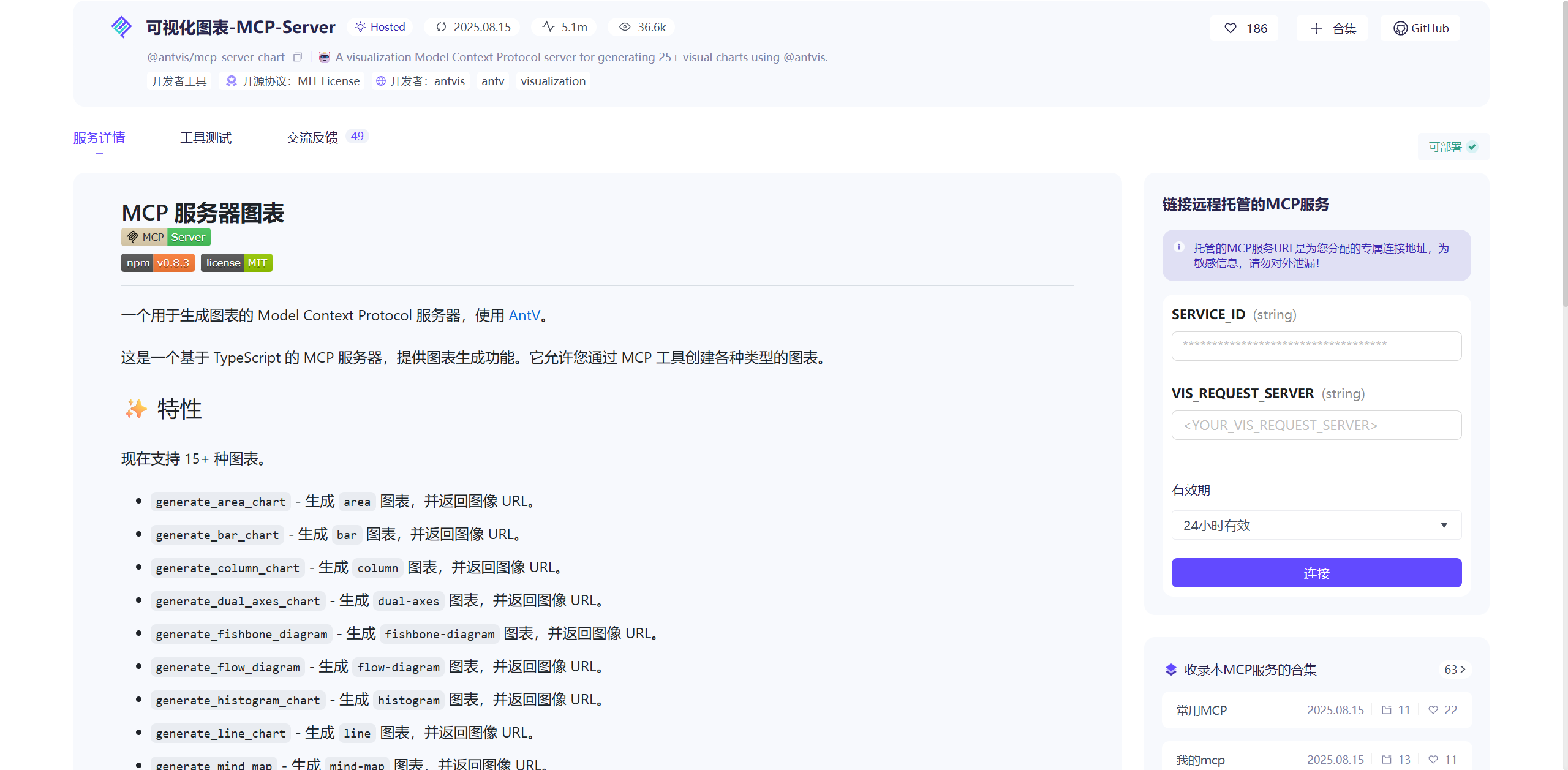

魔塔社区地址:

MCP - 可视化图表-MCP-Server

导入 json,创建 mcp 服务器,这个使用的是 npx

{
  "mcpServers": {
    "mcp-server-chart": {
      "command": "npx",
      "args": [
        "-y",
        "@antv/mcp-server-chart"
      ]
    }
  }
}

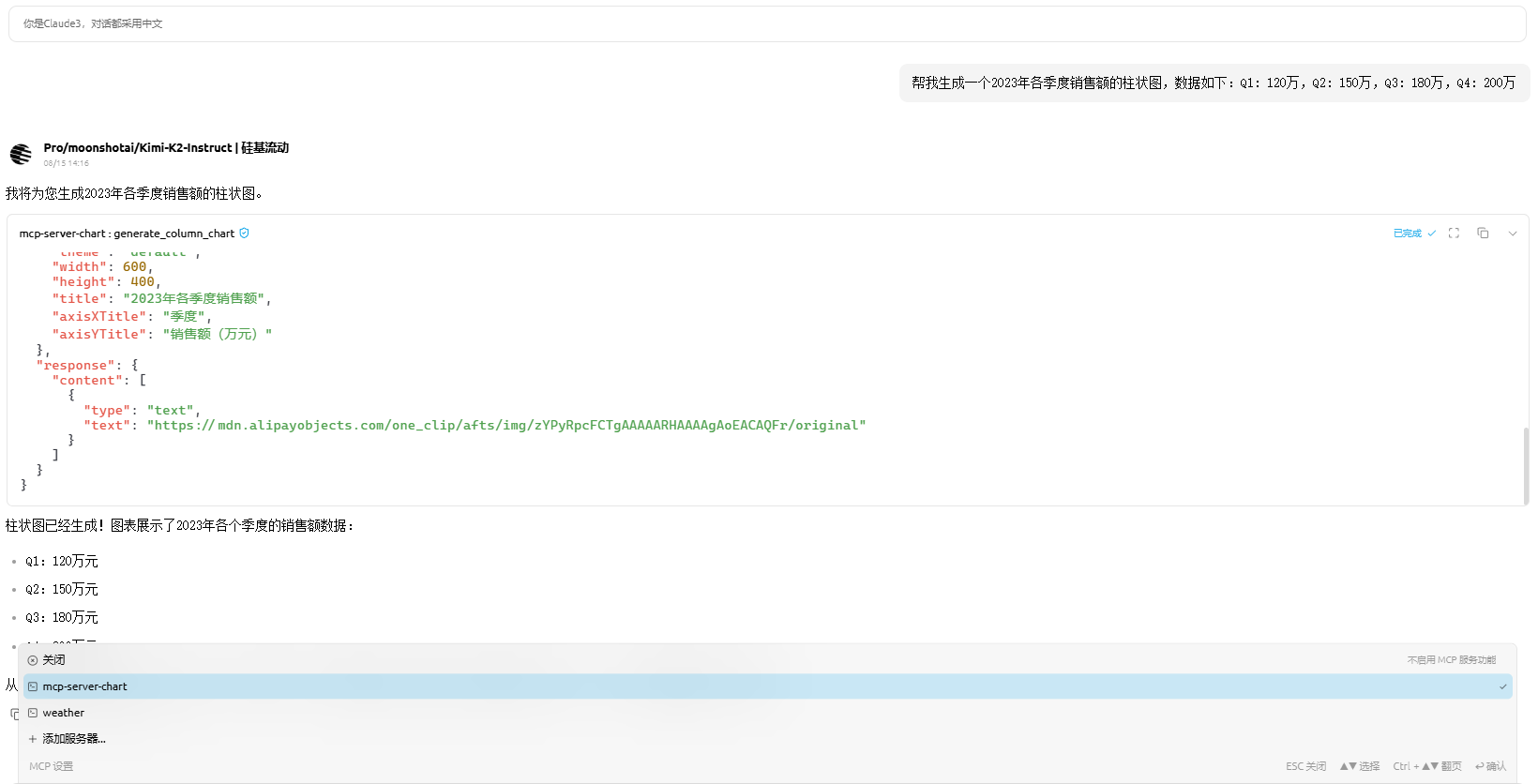

  1. Q:“帮我生成一个2023年各季度销售额的柱状图,数据如下:Q1: 120万,Q2: 150万,Q3: 180万,Q4: 200万”

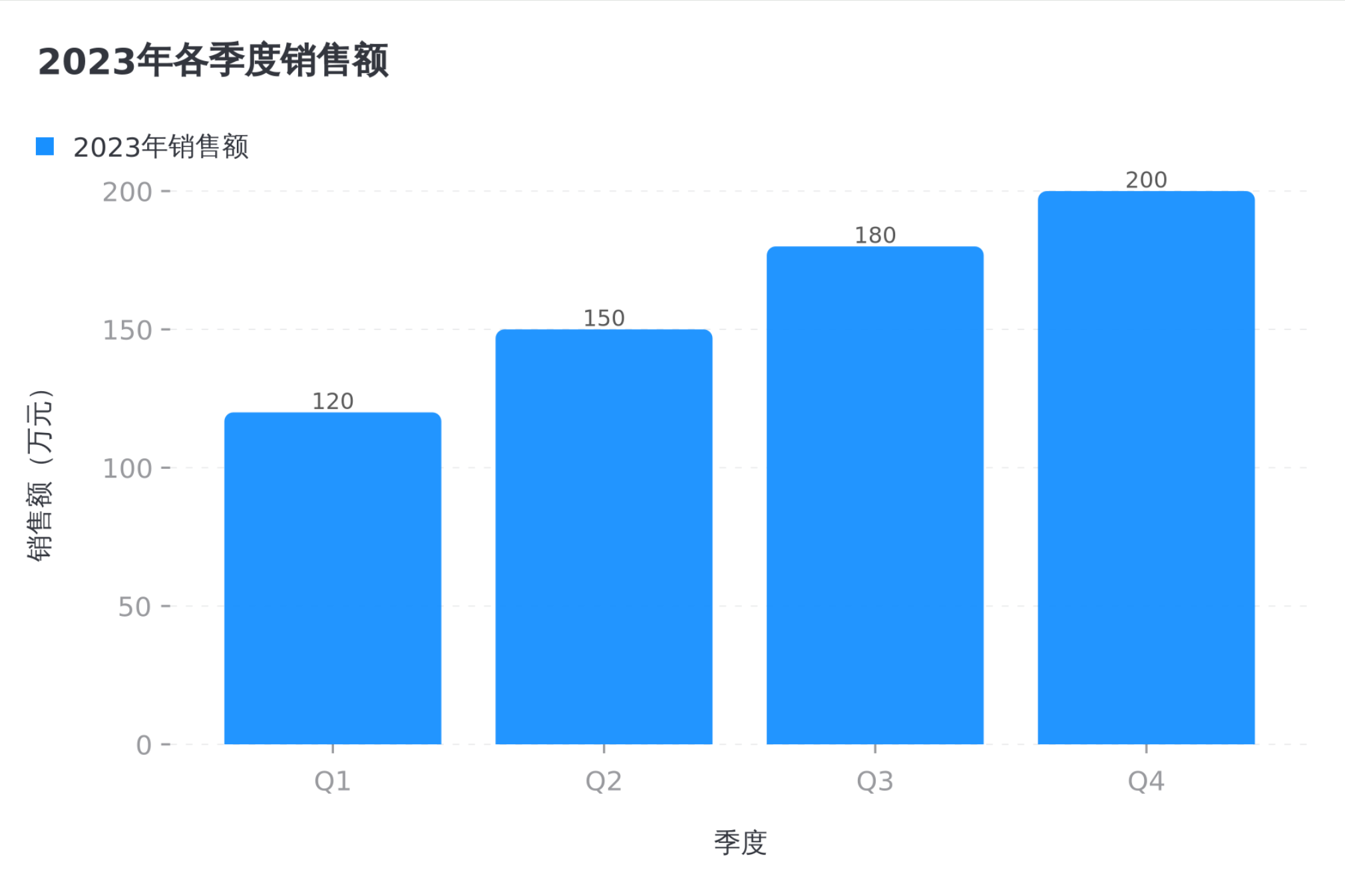

图表如下

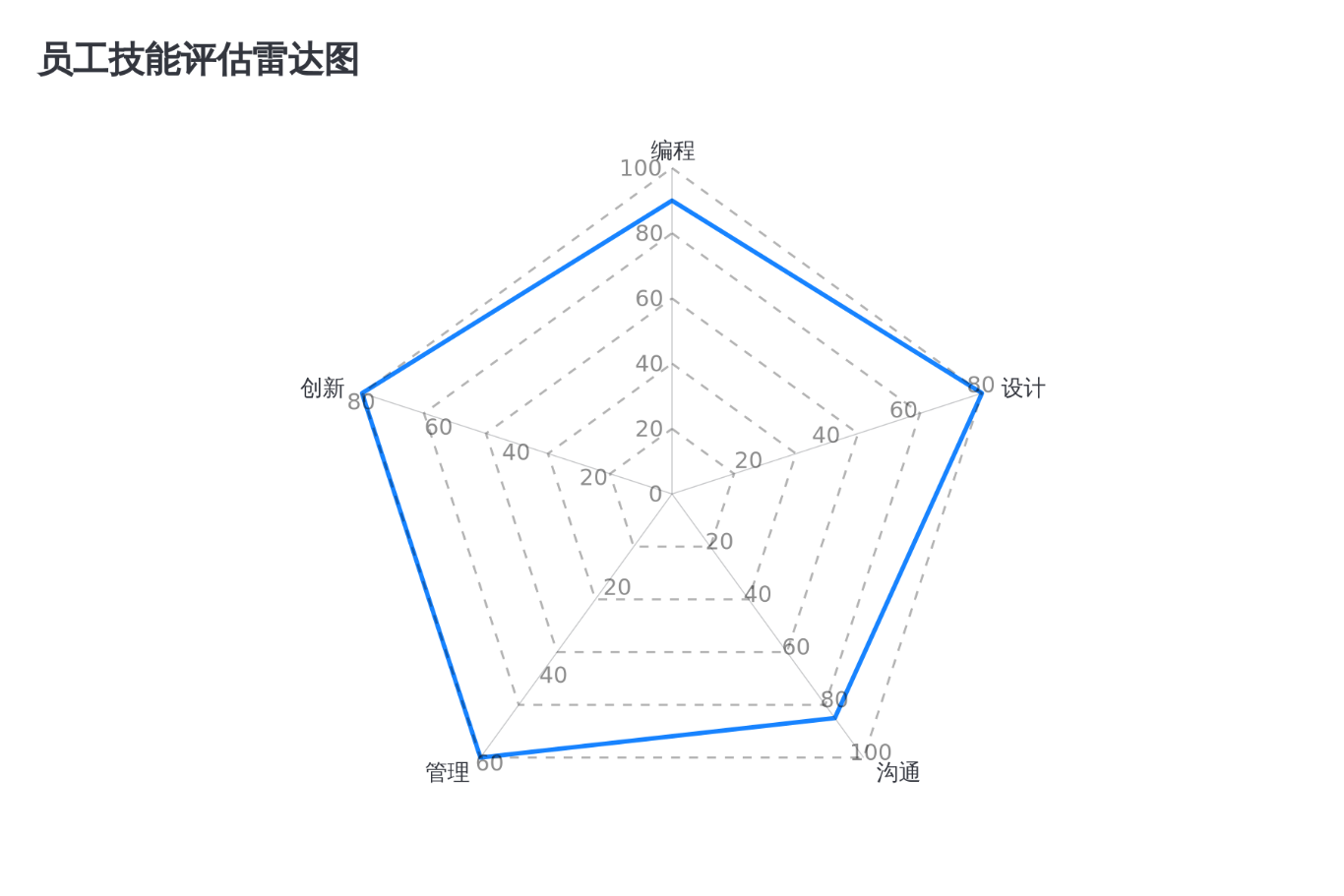

  1. Q:帮我做个员工技能评估雷达图,包括:编程90分,设计70分,沟通85分,管理60分,创新80分

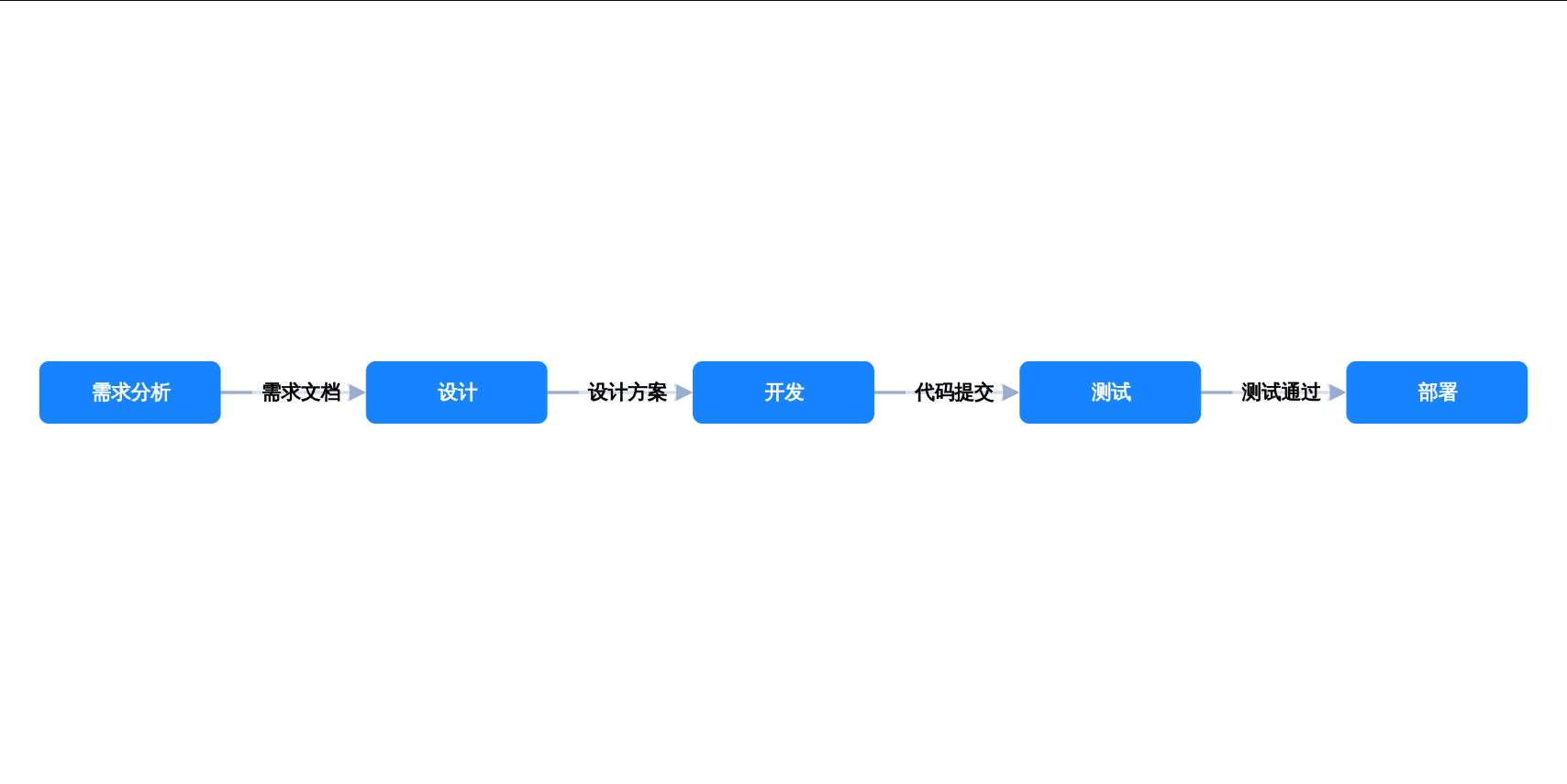

  1. Q:创建一个项目流程图,显示:需求分析→设计→开发→测试→部署的流程

整理来说效果还是十分不错的

智谱搜索 MCP

尝试 智谱搜索 MCP

:::info 这里采用 Cherry Studio

:::

MCP.so 文档

MCP Servers

官方文档

智谱AI开放平台

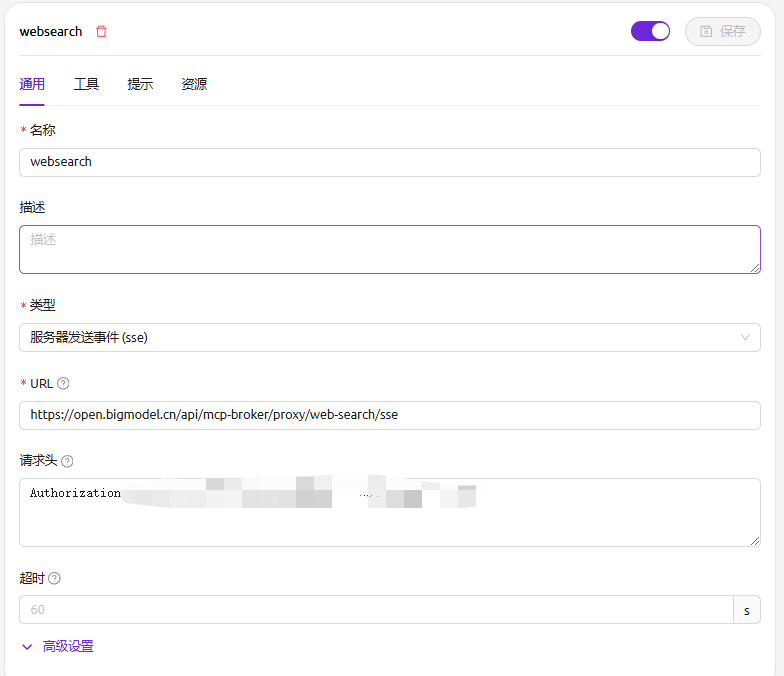

配置如下

{
  "mcpServers": {
    "zhipu-web-search-sse": {
      "url": "https://open.bigmodel.cn/api/mcp/web_search/sse?Authorization={42cbd82f2de941c796a0c17c606f40d3.2SjOf60Nb6ycQ0Ct}"
    }
  }
}

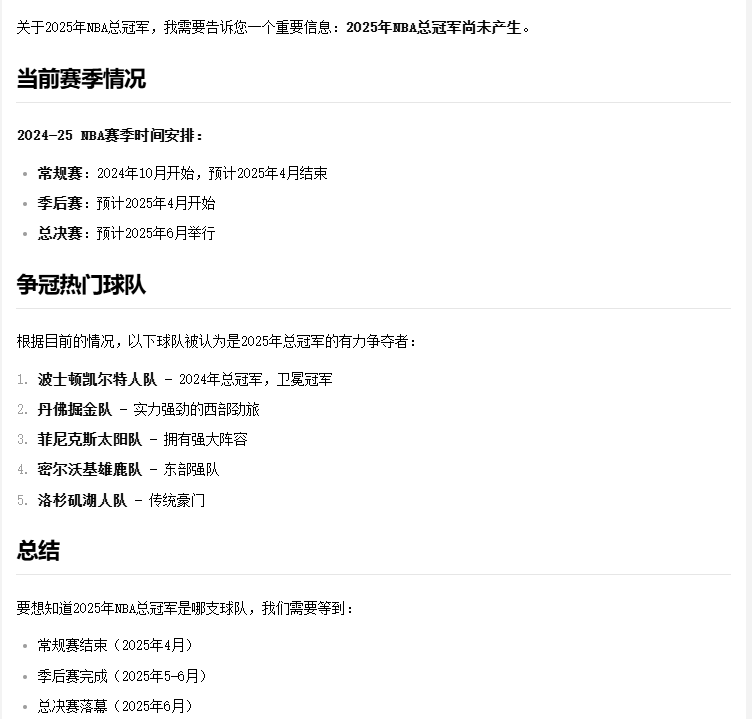

其实不调用的话,是无法得到相应准确数据的

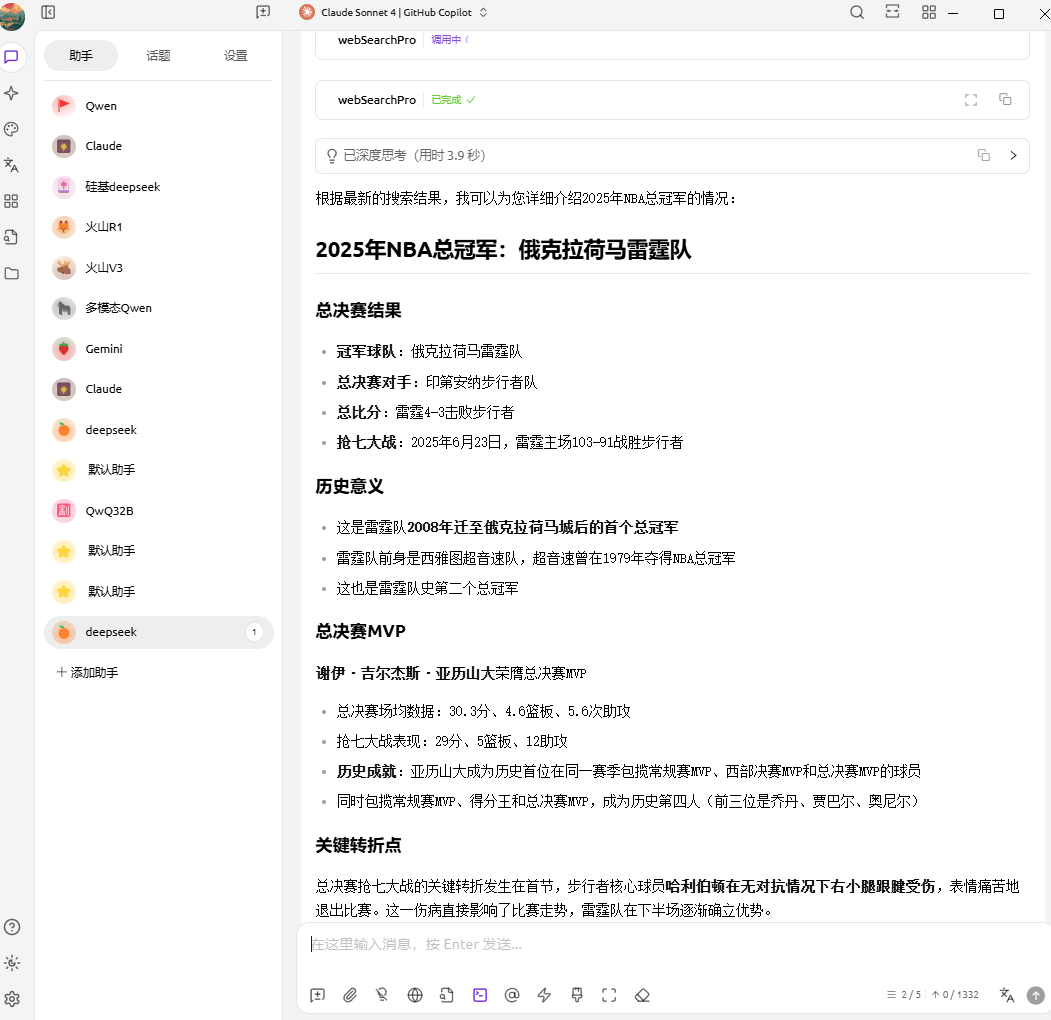

MCP 调用后

调用效果还是不错的,结果是可以

总决赛抢七大战的关键转折发生在首节,步行者核心球员哈利伯顿在无对抗情况下右小腿跟腱受伤,表情痛苦地退出比赛。这一伤病直接影响了比赛走势,雷霆队在下半场逐渐确立优势。

Mcp 开发

认识 UV

uv 是 Astral 推出的超快 Python 包与项目管理工具,用 Rust 写的,目标是替代 pip/virtualenv/pip-tools/pipx/poetry 的大部分日常场景。

官网地址

uv

具体下载如下,Windows 安装环境

iwr -useb https://astral.sh/uv/install.ps1 | iex

# 检测是否下载成功
uv --version
uv 0.8.11 (f892276ac 2025-08-14)

基本使用

# 安装依赖(根据 pyproject.toml 和 uv.lock)
uv sync

# 运行程序
uv run python main.py

#添加/删除依赖(会自动更新 pyproject.toml 与 uv.lock)
uv add requests
uv remove requests

# 固定/复现环境,严格按锁文件安装:
uv sync --frozen

# Python 版本(你的仓库已有 .python-version,uv 会按此安装/使用)
# 安装对应解释器:
uv python install
# 查看已装版本:
uv python list

天气 MCP

这个是比较经典的,直接通过官方给的示例学习一下

主要逻辑

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   Cherry        │◄──►│   MCP Server    │◄──►│  外部API服务     │
│   (客户端)       │    │  (你的代码)      │    │ (天气API等)      │
└─────────────────┘    └─────────────────┘    └─────────────────┘

两个工具

  1. 获取天气警报 (get_alerts) - 获取美国各州的天气警报信息
  2. 获取天气预报 (get_forecast) - 获取指定坐标的详细天气预报

创建一个weather.py

from typing import Any
import httpx
from mcp.server.fastmcp import FastMCP

# Initialize FastMCP server
mcp = FastMCP("weather")

# Constants
NWS_API_BASE = "https://api.weather.gov"
USER_AGENT = "weather-app/1.0"

async def make_nws_request(url: str) -> dict[str, Any] | None:
    """Make a request to the NWS API with proper error handling."""
    headers = {
        "User-Agent": USER_AGENT,
        "Accept": "application/geo+json"
    }
    async with httpx.AsyncClient() as client:
        try:
            response = await client.get(url, headers=headers, timeout=30.0)
            response.raise_for_status()
            return response.json()
        except Exception:
            return None

def format_alert(feature: dict) -> str:
    """Format an alert feature into a readable string."""
    props = feature["properties"]
    return f"""
Event: {props.get('event', 'Unknown')}
Area: {props.get('areaDesc', 'Unknown')}
Severity: {props.get('severity', 'Unknown')}
Description: {props.get('description', 'No description available')}
Instructions: {props.get('instruction', 'No specific instructions provided')}
"""

@mcp.tool()
async def get_alerts(state: str) -> str:
    """Get weather alerts for a US state.

    Args:
        state: Two-letter US state code (e.g. CA, NY)
    """
    url = f"{NWS_API_BASE}/alerts/active/area/{state}"
    data = await make_nws_request(url)

    if not data or "features" not in data:
        return "Unable to fetch alerts or no alerts found."

    if not data["features"]:
        return "No active alerts for this state."

    alerts = [format_alert(feature) for feature in data["features"]]
    return "\n---\n".join(alerts)

@mcp.tool()
async def get_forecast(latitude: float, longitude: float) -> str:
    """Get weather forecast for a location.

    Args:
        latitude: Latitude of the location
        longitude: Longitude of the location
    """
    # First get the forecast grid endpoint
    points_url = f"{NWS_API_BASE}/points/{latitude},{longitude}"
    points_data = await make_nws_request(points_url)

    if not points_data:
        return "Unable to fetch forecast data for this location."

    # Get the forecast URL from the points response
    forecast_url = points_data["properties"]["forecast"]
    forecast_data = await make_nws_request(forecast_url)

    if not forecast_data:
        return "Unable to fetch detailed forecast."

    # Format the periods into a readable forecast
    periods = forecast_data["properties"]["periods"]
    forecasts = []
    for period in periods[:5]:  # Only show next 5 periods
        forecast = f"""
{period['name']}:
Temperature: {period['temperature']}°{period['temperatureUnit']}
Wind: {period['windSpeed']} {period['windDirection']}
Forecast: {period['detailedForecast']}
"""
        forecasts.append(forecast)

    return "\n---\n".join(forecasts)

if __name__ == "__main__":
    # Initialize and run the server
    mcp.run(transport='stdio')

导入 MCP 客户端(这里使用 Cherry)

GitHub - CherryHQ/cherry-studio: 🍒 Cherry Studio is a desktop client that supports for multiple LLM providers.

{
  "mcpServers": {
    "weather": {
      "command": "uv",
      "args": [
        "--directory",
        "g:\\shared\\mcp-learn\\my-mcp-server",
        "run",
        "weather.py"
      ]
    }
  }
}

具体效果如下

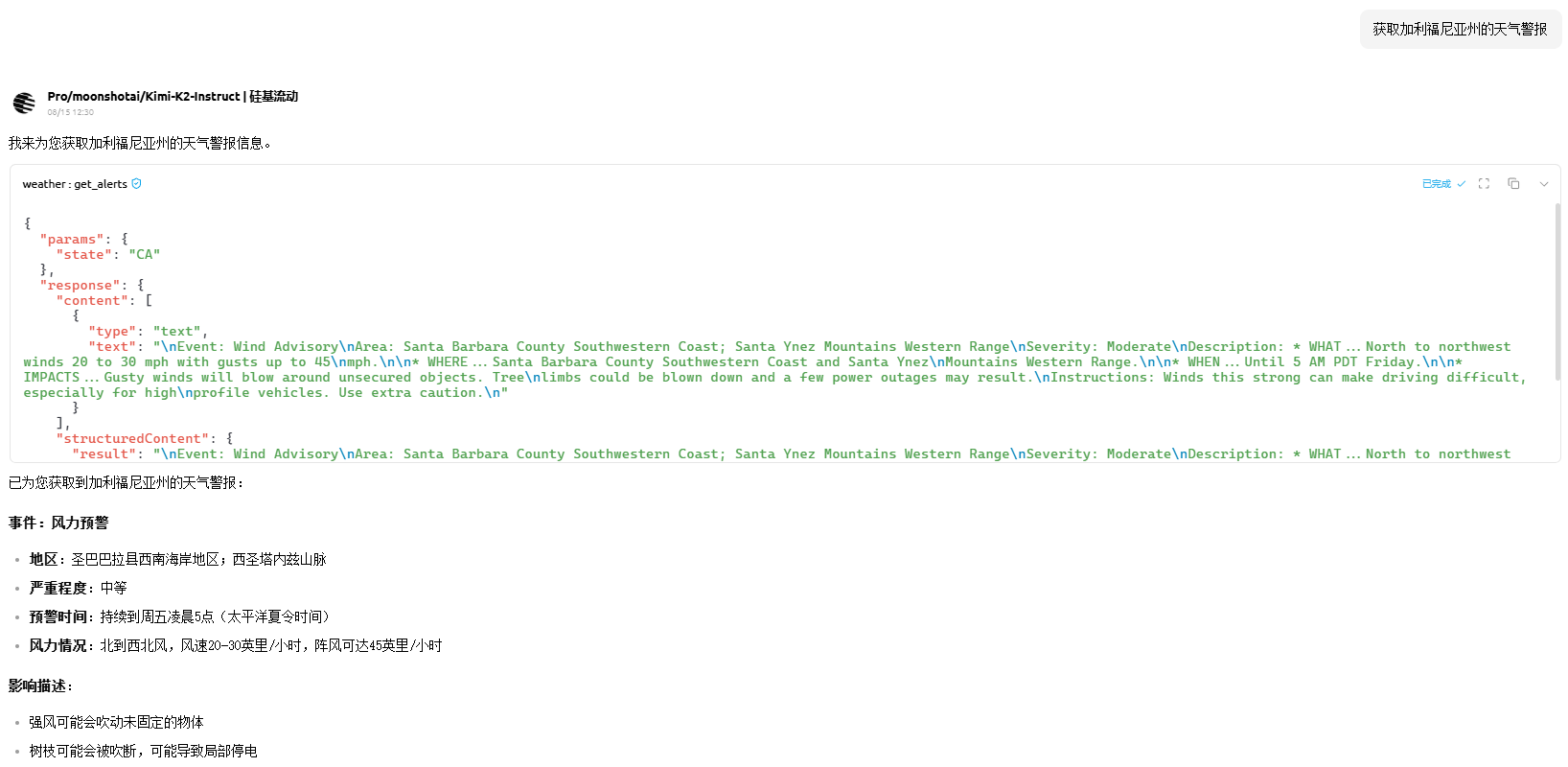

当我询问“获取加利福尼亚州的天气警报”

{
  "params": {
    "state": "CA"
  },
  "response": {
    "content": [
      {
        "type": "text",
        "text": "\nEvent: Wind Advisory\nArea: Santa Barbara County Southwestern Coast; Santa Ynez Mountains Western Range\nSeverity: Moderate\nDescription: * WHAT...North to northwest winds 20 to 30 mph with gusts up to 45\nmph.\n\n* WHERE...Santa Barbara County Southwestern Coast and Santa Ynez\nMountains Western Range.\n\n* WHEN...Until 5 AM PDT Friday.\n\n* IMPACTS...Gusty winds will blow around unsecured objects. Tree\nlimbs could be blown down and a few power outages may result.\nInstructions: Winds this strong can make driving difficult, especially for high\nprofile vehicles. Use extra caution.\n"
      }
    ],
    "structuredContent": {
      "result": "\nEvent: Wind Advisory\nArea: Santa Barbara County Southwestern Coast; Santa Ynez Mountains Western Range\nSeverity: Moderate\nDescription: * WHAT...North to northwest winds 20 to 30 mph with gusts up to 45\nmph.\n\n* WHERE...Santa Barbara County Southwestern Coast and Santa Ynez\nMountains Western Range.\n\n* WHEN...Until 5 AM PDT Friday.\n\n* IMPACTS...Gusty winds will blow around unsecured objects. Tree\nlimbs could be blown down and a few power outages may result.\nInstructions: Winds this strong can make driving difficult, especially for high\nprofile vehicles. Use extra caution.\n"
    },
    "isError": false
  }
}

最后分析,官网文章是这样总结的

当你提出问题时:

  1. client 将你的问题发送给 Claude
  2. Claude 分析可用的 tools 并决定使用哪些 tool
  3. client 通过 MCP server 执行选择的 tool
  4. 结果被发回给 Claude
  5. Claude 制定自然语言响应
  6. 响应显示给你
